Features:
♦ Zinc die-cast housing, nickel-plated
♦ Excellent quality component , professional circuit design and low loss
♦ Excellent quality chip , professional program design and compatible with more types of satellite receiver

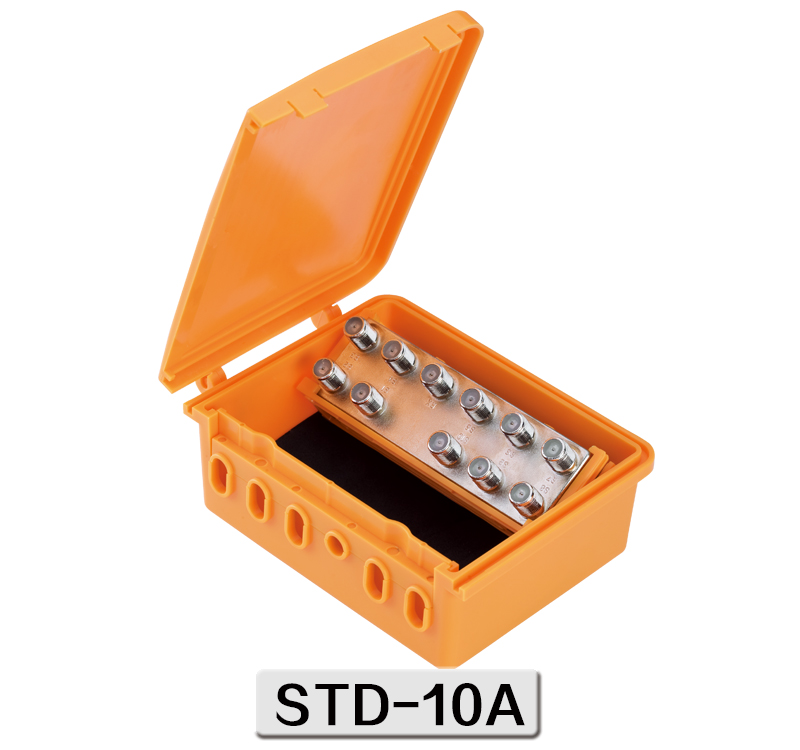

♦ Can work normally outdoor under unsheltered circumstance,exquisite plastic case shell attached
♦ DiSEqC 1.0、2.0,support bi-directional DiSEqC full control function
♦ DiSEqC 1.0、1.1、1.2、2.0、2.1、2.2,etc individual and combined control functions;support secondary
programming,more powerful function
♦ Select one of ten satellite signals through DiSEqC commands supplied from satellite receiver♦ Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously
♦ Support DiSEqC “standby” command
-
Item
Specification
Item
Specification
Frequency Rang
950-2150MHz
Normal Working Voltage
12-20V
Insertion Loss
3dB
DC Power Consumption
10mA
Isolation
20dB
DC Max Power Passing
500mA
Return Loss
8dB
Impedance
75Ω
