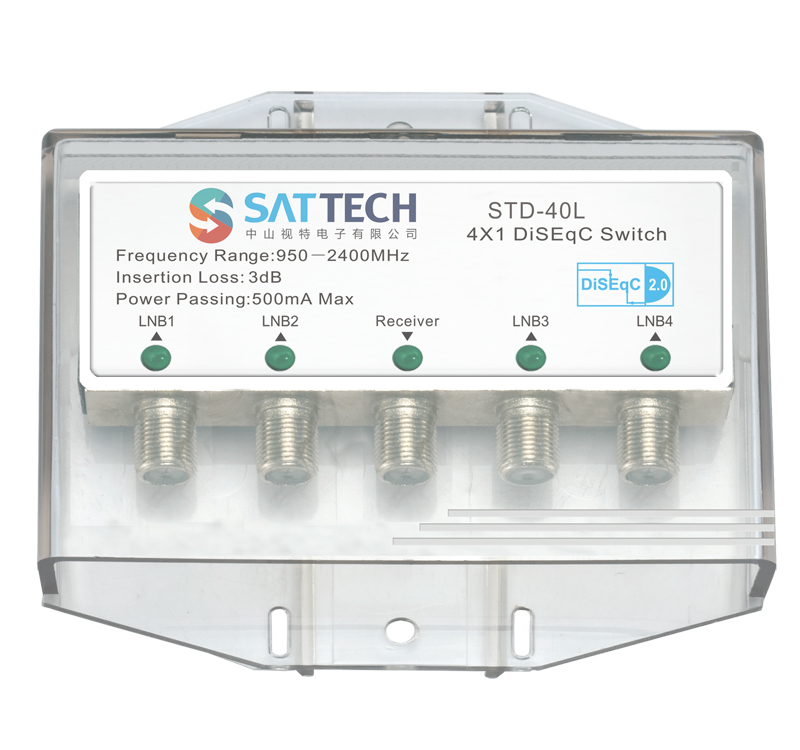

STD-40L

Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    ♦ Zinc die-cast housing, nickel-plated

    ♦ Excellent quality component, professional circuit design and low loss

    ♦ Excellent quality chip, professional program design and compatible with more types of satellite receiver

    ♦ Can work normally outdoors under unsheltered circumstance, exquisite case shell attached

    ♦ DiSEqC 2.0 supports bi-directional DiSEqC full control function

    ♦ Power indicator design ensures more secure usage

    ♦ Select one of four satellite signals through DiSEqC commands supplied from satellite receiver

    ♦ Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously

    ♦ Support DiSEqC “standby” command




  • Item

    Specification

    Item

    Specification

    Frequency Rang

    950-2400MHz

    Normal Working Voltage

    12-20V

    Insertion Loss

    3dB

    DC Power Consumption

    10mA

    Isolation

    20dB

    DC Max Power Passing

    500mA

    Return Loss

    8dB

    Impedance

    75Ω
