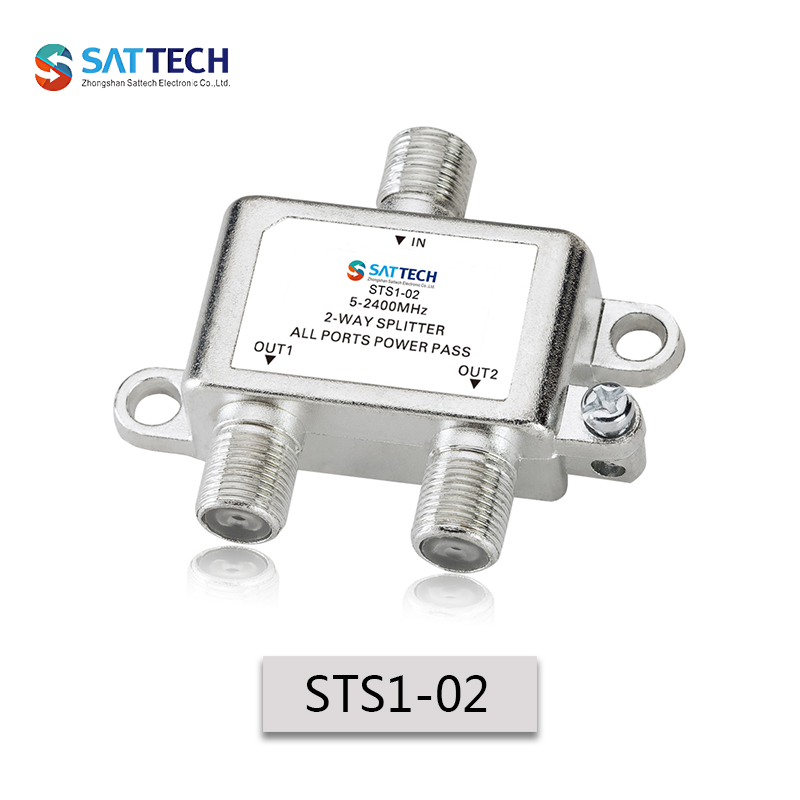

STS1-02

Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm


  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    • Zinc die-cast housing,tin-plated
    • Light weight and compact size
    • Easy installation with two edge hole sites
    • Screening factor: 5-2400MHz≥100dB
    • Low insertion loss,High isolation, perfect performance index
    •    Designed for SATV/CATV
    •    Power passing:24V 0.8A(MAX)
    • All ports F-(f) connector,75Ohm
  • Frequency Range (MHz)

    Insertion Loss(dB)

    Mutual Isolation(dB)

    Return Loss(dB)

    5-40

    ≤3.5

    ≥20

    ≥10

    40-1000

    ≤3.8

    ≥22

    ≥12

    1000-1750

    ≤4.0

    ≥20

    ≥12

    1750-2400

    ≤4.5

    ≥20

    ≥10
