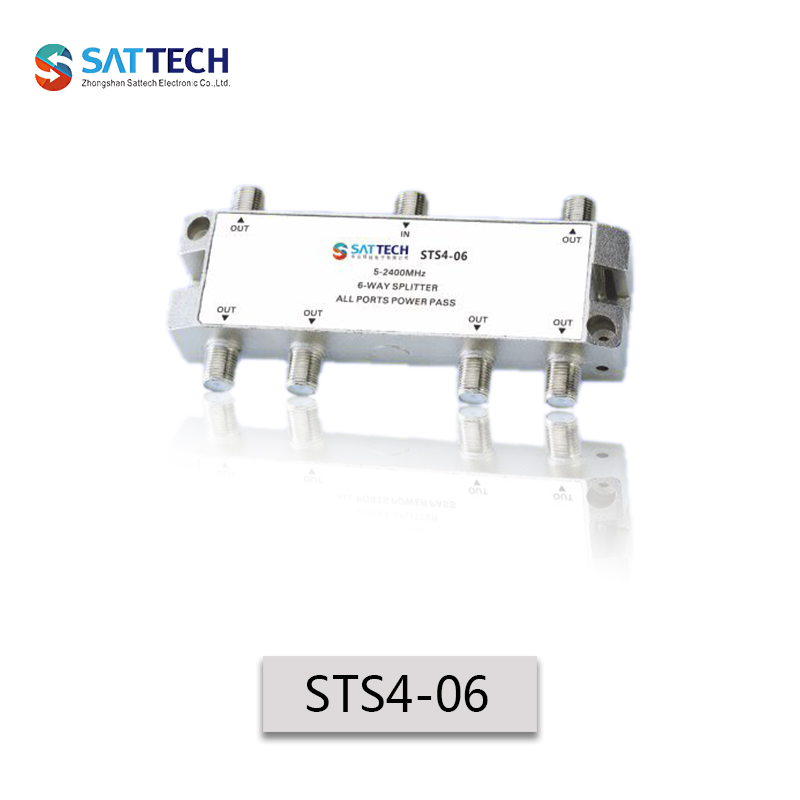

STS4-06
Packing Information
Product size:
Giftbox Size :mm
Carton Size :cm
- Connection and Size Picture
- Specification
- Accessories
-
Features:
- Zinc die-cast housing，tin-plated
- Light weight and compact size
- Easy installation with two edge hole sites
- Screening factor: 5-2400MHz≥100dB
- Low insertion loss,High isolation, perfect performance index
- Designed for SATV/CATV
- Power passing:24V 0.8A(MAX)
- All ports F-(f) connector，75Ohm
-
Frequency Range (MHz)
Insertion Loss(dB)
Mutual Isolation(dB)
Return Loss(dB)
5-40
≤10.5
≥20
≥10
40-1000
≤11.0
≥20
≥12
1000-1750
≤12.5
≥20
≥12
1750-2400
≤15.5
≥20
≥10
