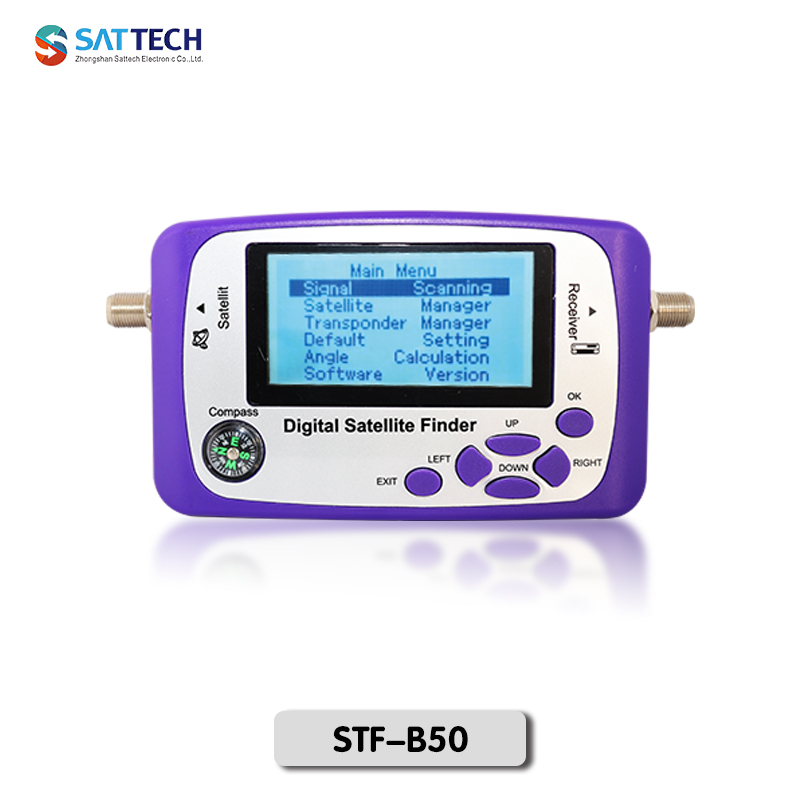

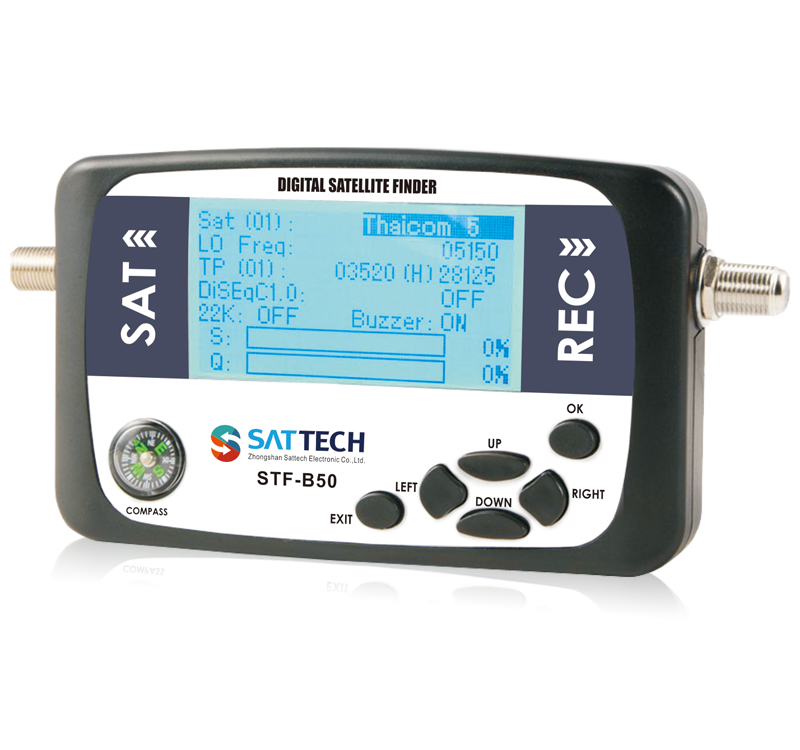

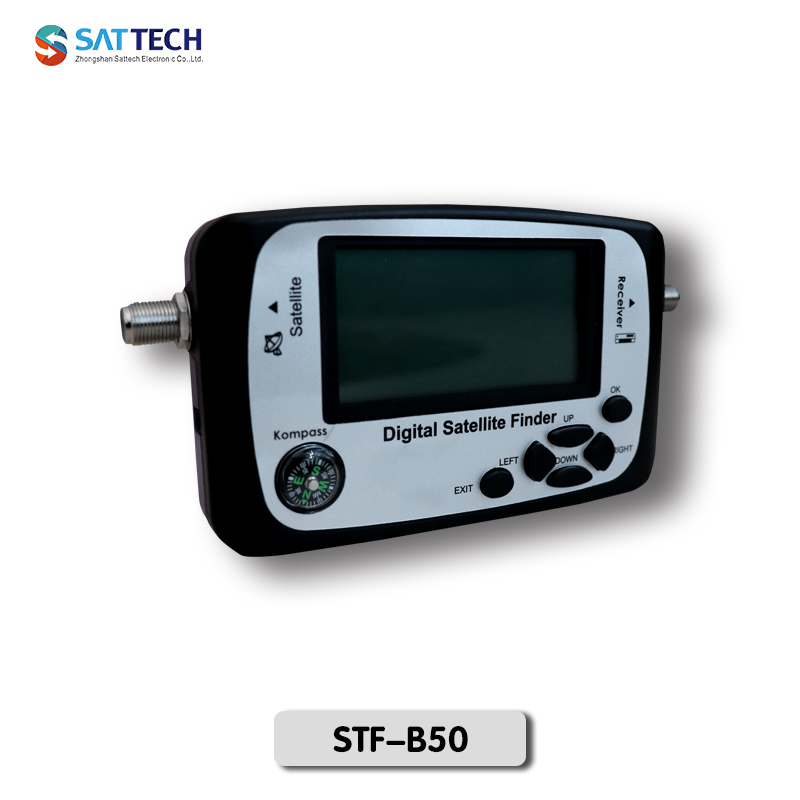

Product Name：Digital Satellite Finder
Model NO：STF-B50
Features：Support DVB-S2,DVB-S
- Connection and Size Picture
- Specification
- Accessories
-
Features:
♦ Support DVB-S2,DVB-S
♦ Multi standard demodulation&decoding
♦ Use LED to display the satellite signal strength and quality
♦ Set up LO, of the LNB and the parameters of satellite TV,finding satellite signal accurately
♦ Built-in comtrollable LCD backlight and signal alert speaker
♦ Support 0/22KHz and 13/18V control signals
-
Item
Specification
Item
Specification
Frequency Range
950-2150MHz
Operating Temperature
0℃ ~ + 40℃
Input Level Range
-65dBm~-25dBm
Input connector
F type
Symbol rate
1 to 45Msps
Impedance
75Ω
DiSEqC 1.0
Supported
DC power supply
DC 12 ~20V
