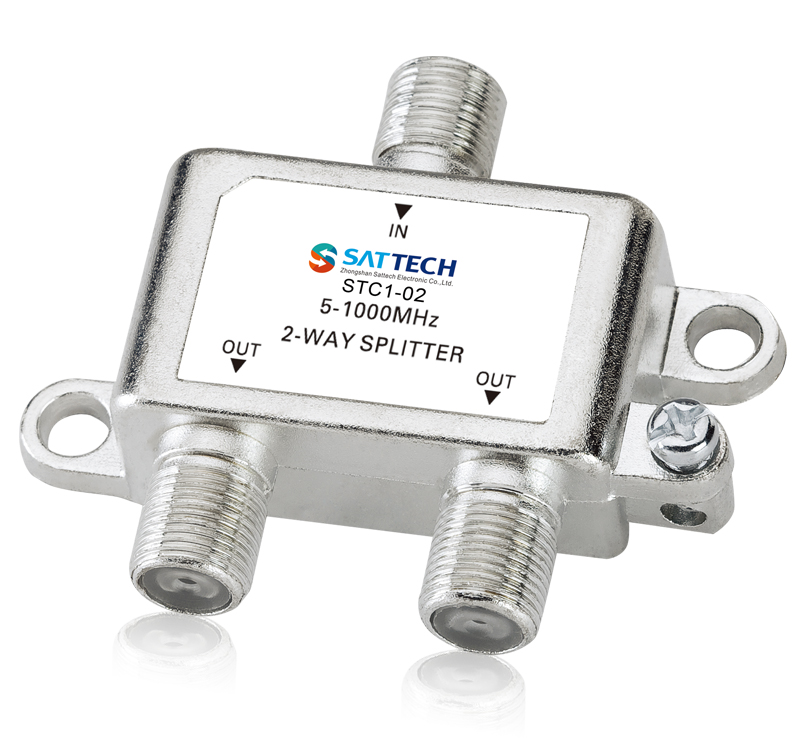

STC1-02

Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    • Zinc die-cast housing,tin-plated
    • Light weight and compact size
    • Easy installation with two edge hole sites
    • Screening factor: 5-1000MHz≥100dB
    • Micro-strip circuit design and perfect performance index
    • All ports F-(f) connector,75Ohm
  • Frequency Range (MHz)

    Insertion Loss(dB)

    Mutual Isolation(dB)

    Return Loss(dB)

    5-40

    3.5

    30

    20

    40-470

    3.6

    30

    20

    470-860

    3.8

    28

    18

    860-1000

    4.0

    25

    17
