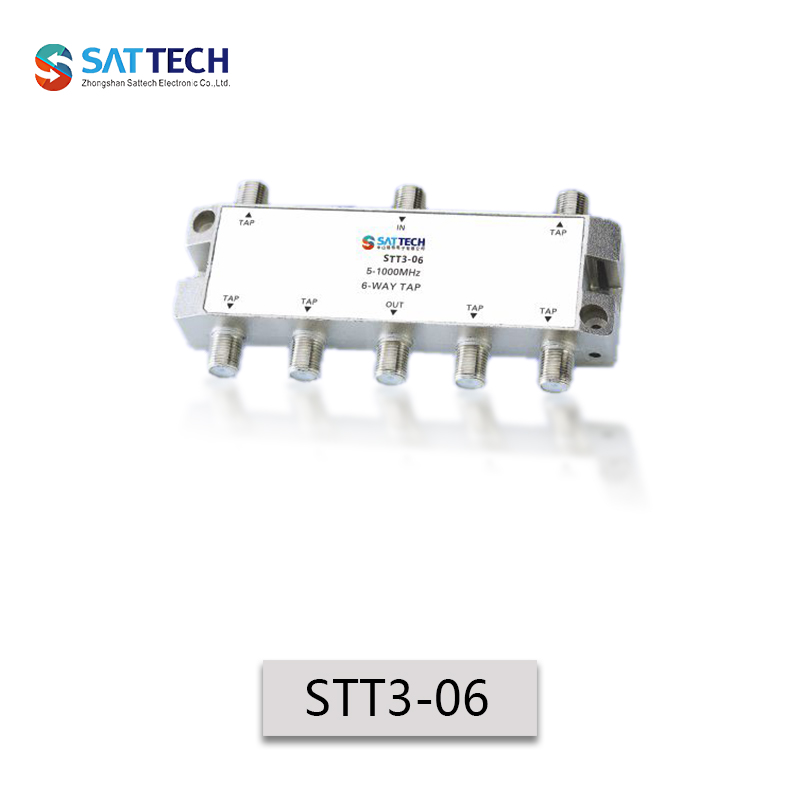

STT3-06

Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    • Zinc die-cast housing, nickel-plated
    • Easy installation with two edge hole sites
    • Screening factor: 5-1000MHz≥100dB
    • Low insertion loss,high return loss and isolation
    • Micro-strip circuit design and perfect performance index
    • All ports with female connectors, 75Ohm
  • Item

    Frequency Range

    12

    14

    16

    18

    20

    22

    24

    27

    30

    Insertion Loss
    (dB)

    5-40(MHz)

    3.5

    3.5

    2

    2

    1.2

    0.8

    0.8

    0.8

    0.8

    40-470(MHz)

    3.8

    3.8

    2

    2

    1.2

    0.8

    0.8

    0.8

    0.8

    470-860(MHz)

    4.0

    4.0

    2.2

    2.2

    1.5

    1

    1

    1

    1

    860-1000(MHz)

    4.5

    4.2

    2.5

    2.2

    1.5

    1

    1

    1

    1

    Tap Loss Tolerance
    (dB)

    5-40(MHz)

    ±1.0

    40-470(MHz)

    ±1.0

    470-860(MHz)

    ±1.5

    860-1000(MHz)

    ±1.5

    Mutual Isolation
    (dB)

    5-40(MHz)

    28

    28

    28

    28

    28

    28

    28

    28

    28

    40-470(MHz)

    28

    28

    28

    28

    28

    28

    28

    28

    28

    470-860(MHz)

    25

    25

    25

    25

    25

    25

    25

    25

    25

    860-1000(MHz)

    22

    22

    25

    25

    25

    25

    25

    25

    25

    Reverse Isolation
    (dB)

    5-40(MHz)

    28

    28

    30

    30

    30

    30

    40

    40

    40

    40-470(MHz)

    25

    25

    25

    25

    30

    30

    35

    35

    35

    470-860(MHz)

    25

    25

    25

    25

    28

    28

    30

    30

    30

    860-1000(MHz)

    25

    25

    25

    25

    25

    27

    28

    28

    28

    Return Loss
    (dB)

    5-40(MHz)

    20

    20

    20

    20

    20

    20

    20

    20

    20

    40-470(MHz)

    20

    20

    20

    20

    20

    20

    20

    20

    20

    470-860(MHz)

    18

    18

    18

    18

    18

    18

    18

    18

    18

    860-1000(MHz)

    18

    18

    18

    18

    18

    18

    18

    18

    18
