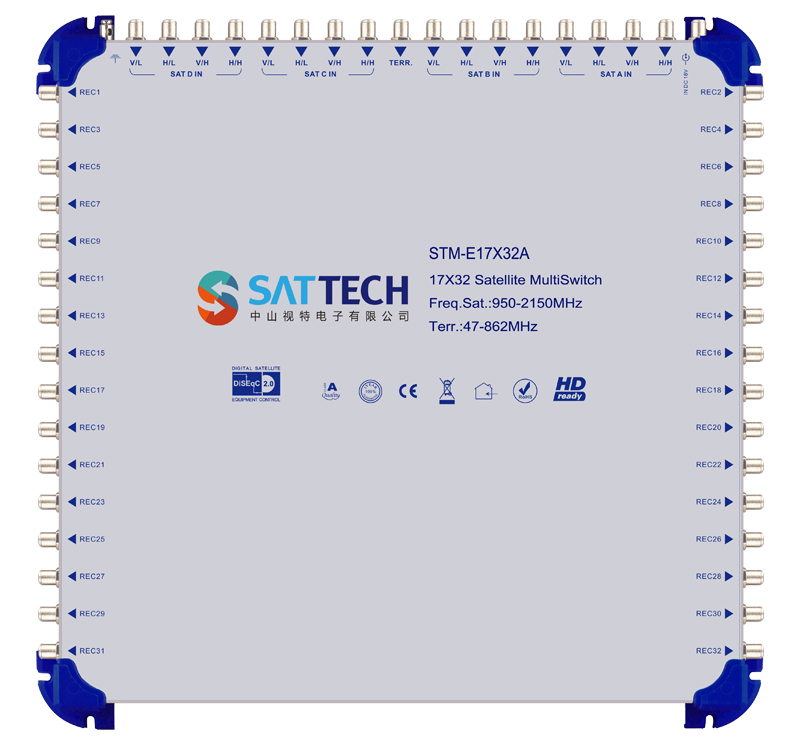

STM-E17X32A

Product Name :17 in 32

        Model :STM-E17X32A

Packing Information

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    ♦ Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient

    ♦ Excellent quality component, professional amplification design and low loss

    ♦ External 20V 3000mA DC power offering more stable operation

    ♦ 13/18V 0/22KHz DiSEqC 1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port

    ♦ Capable of connecting Twelve SATV signals, one ANT signal or FM broadcast simultaneously

    ♦ Twelve SATV signals switched through 13/18V 0/22KHz DiSEqC 1.0/2.0 from satellite receiver

    ♦ Thirteen input signals  distributed into thirty-two subscribers to use simultaneously and no mutual interference

    ♦ Supports multi-satellite multi-receiver  usage

  • Item

    Specification

    Item

    Specification

    Frequency Range ANT

    5-860(MHz)

    Return Loss ANT Input

    12(dB)

    Frequency Range SAT

    950-2150 (MHz)

    Return Loss Outputs

    8(dB)

    Insertion Loss ANT

    5(dB)

    Output Level ANT

    88(dBuV)

    Insertion Loss SAT

    4(dB)

    Output Level SAT

    100(dBuV)

    Isolation In-In SAT

    25(dB)

    Normal Working Voltage

    12-20(V)

    Isolation In-In SAT/ANT

    25(dB)

    DC Power Consumption

    50(mA)

    Isolation Between Outputs

    25(dB)

    Supply Voltage(VDC)

    20V(±1)2000mA

    Switching Isolation SAT Inputs

    28(dB)

    Temperature Range

    -20℃-60℃

    Return Loss SAT Inputs

    10(dB)

    Impedance(all ports)

    75(Ω)



  •
