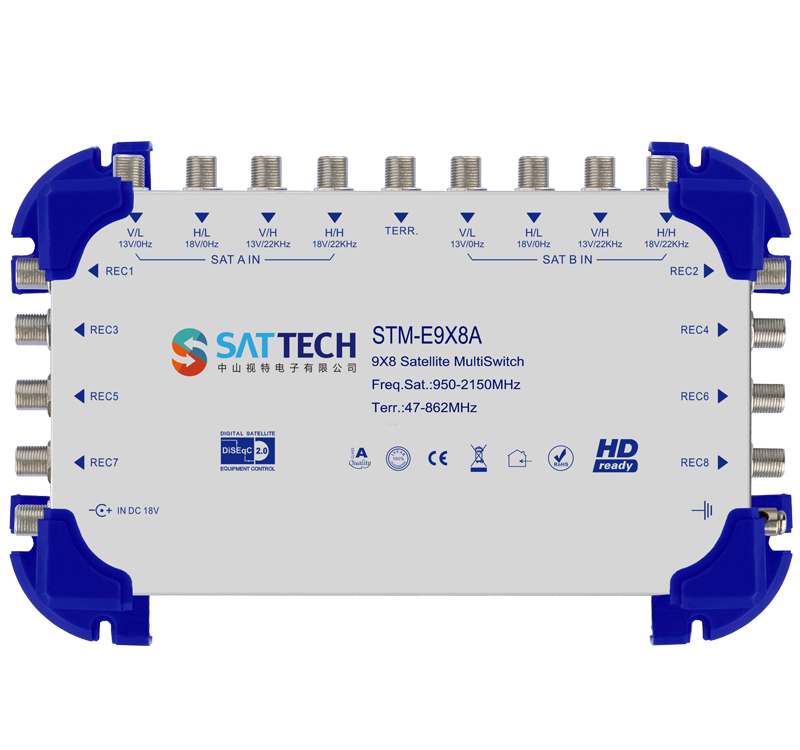

STM-E9X8A

Product Name : Multiswitch of 9 in 8

Model :STM-E9X8A

Packing Information

Giftbox Size :mm

Carton Size :cm

Features:

♦ Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient

♦ Excellent quality component, professional amplification design and low loss

♦ External 20V 2000mA DC power offering more stable operation

♦ 13/18V 0/22KHz DiSEqC 1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port

♦ Capable of connecting Eight SATV signals, one ANT signal or FM broadcast simultaneously

♦ Eight SATV signals switched through 13/18V 0/22KHz DiSEqC 1.0/2.0 from satellite receiver

♦ Supports multi-satellite multi-receiver and cascadable usage

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss SAT Inputs	10(dB)
Frequency Range SAT	950-2150(MHz)	Return Loss ANT Input	12(dB)
Insertion Loss ANT	5(dB)	Return Loss Outputs	8(dB)
Insertion Loss SAT	4(dB)	Output Level ANT	88(dBuV)
Insertion Loss Trunk(for cascadable type)	0(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20(V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	200(mA)
Isolation Between Outputs	25(dB)	Supply Voltage(VDC)	20V(±1)2000mA
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Cross Isolation(for cascadable type)	25(dB)	Impedance(all ports)	75(Ω)
