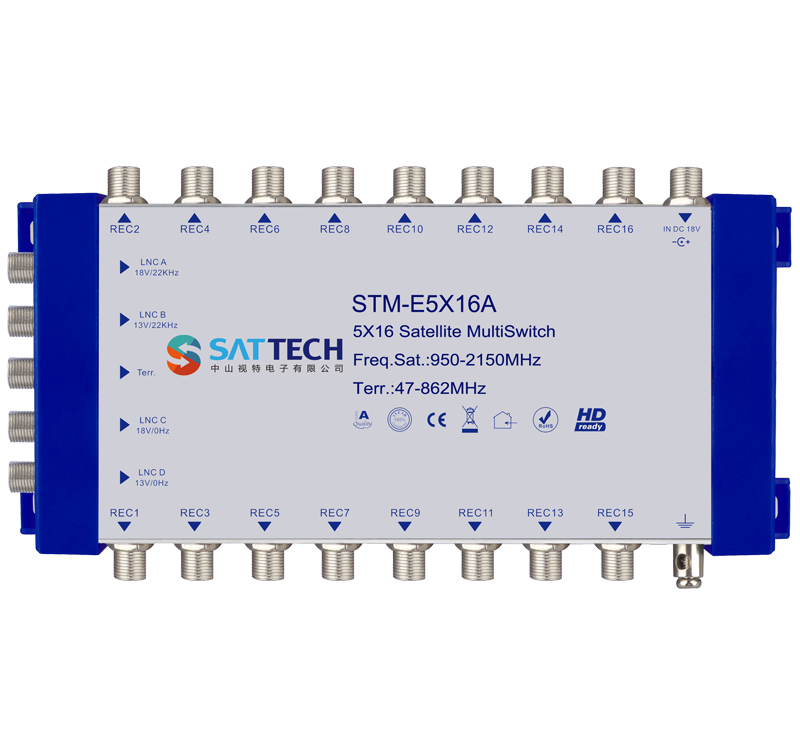

STM-E5X16A

Product Name : 5 in 16

Model :STM-E5X16

Packing Information

Giftbox Size :mm

Carton Size :cm

Features:

♦ Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient

♦ Excellent quality component, professional amplification design and low loss

♦ External 20V 700mA DC power offering more stable operation

♦ 13/18V 0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port

♦ Capable of connecting Four SATV signals, one ANT signal or FM broadcast simultaneously

♦ Four SATV signals switched through 13/18V 0/22KHz from satellite receiver

♦ Five input signals distributed into Four subscribers to use simultaneously and no mutual interference

♦ Supports multi-satellite multi-receiver usage

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss ANT Input	12(dB)
Frequency Range SAT	950-2150 (MHz)	Return Loss Outputs	8(dB)
Insertion Loss ANT	5(dB)	Output Level ANT	88(dBuV)
Insertion Loss SAT	4(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20 (V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	100(mA)
Isolation Between Outputs	25(dB)	Supply Voltage(VDC)	20V（±1）700mA
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Return Loss SAT Inputs	10(dB)	Impedance(all ports)	75(Ω)
