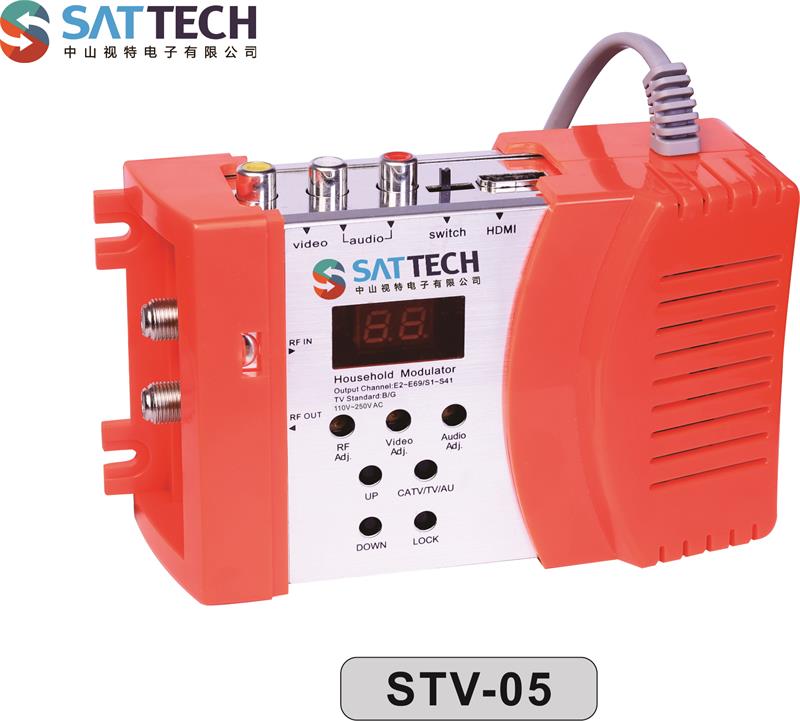

Product Name :Home Agile Modulator(CATV/TV channel selectable)
Model :STV-05
Packing lnformation
Giftbox Size :mm
Carton Size :cm

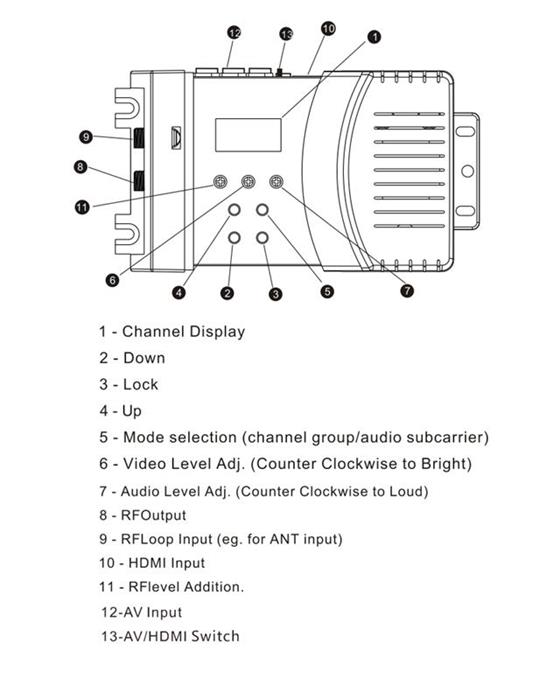

- Connection and Size Picture
- Specification
- Accessories
-
Features:
♦ MCU controlled PLL, high accuracy and stability of video carrier and audio subcarrier.
♦ Audio subcarrier selectable: 5.5MHz、6.0MHz、6.5MHz.
♦ With RF loop input and auto storage at power outage.
♦ LED channel number display.
♦ Double side band modulation for non-adjacent usage.
♦ Output level adjustable.
♦ Select the input of the AV signal or HDMI signal via the toggle switch
-
RF
VIDEO
Item
Specification
Item
Specification
Frequency
47~870MHz
Input Level
0.8Vp-p for 80％±10％ modulation
Output Level
90dBuV
Input Level Adj
0.4Vp-p ~ 0.8Vp-p
A/V Ratio
-15±2dB
S/N Ratio
55dB
Visual Carrier Freq. Accuracy
±5KHz
Freq. Response
±2.5dB(50Hz to 4.2MHz)
Output Return Loss
14dB
Input Impedance
75Ω
Spurious Rejection
50dB
Output Impedance
75Ω
AUDIO
GENERAL
Item
Specification
Item
Specification
Freq. Deviation
±50KHz
Input Voltage
AC 230V 50Hz
Freq. Response
±2dB
Operation Temperature
-20℃ to+ 50℃
Input Impedance
600Ω
HDMI IN
Item
Specification
Item
Specification
Input Resolution
640*480@60Hz 480i, 480p, 576i,576p, 720p, 1080i, 1080p@50Hz/60Hz
Output Impedance
75Ω
HDMI Version
HDMI 1.3
Input Voltage
100-240V～50-60Hz
HDCP Version
HDCP 1.3
-
