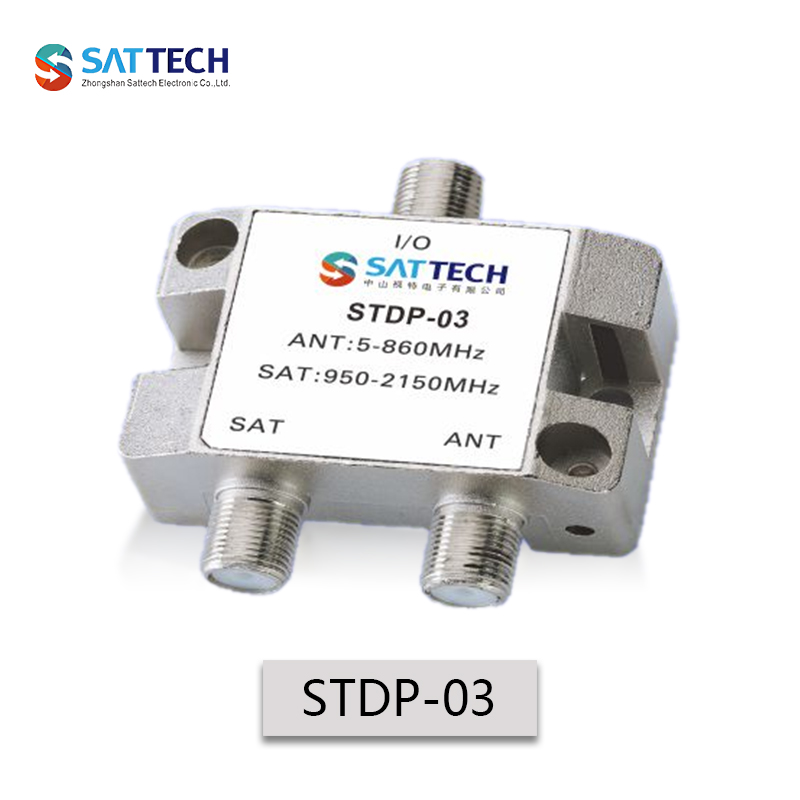

STDP-03

Product Name:SAT/ANT Diplexer

Model :STDP-03

Packing Information

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    ♦ Zinc die-cast housing,tin-plated

    ♦ Light weight and compact size

    ♦ Frequency range:5-2150MHz

    ♦ F-female connector 75Ohm

    ♦ DC power passing: 24VDC 500mA (MAX.)

  • Item

    Frequency Range(MHz)

    Insertion Loss(dB)

    Return Loss(dB)

    IN-ANT

    5-862

    ≤2.0

    ≥10.0

    950-2150

    ≥20.0

    IN-SAT

    5-862

    ≥20.0

    950-2150

    ≤3.0
