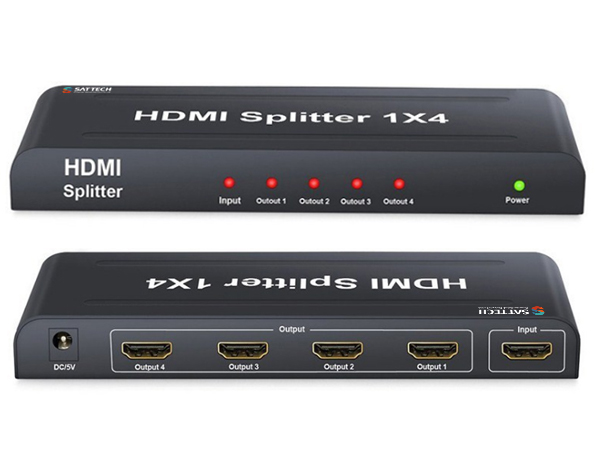

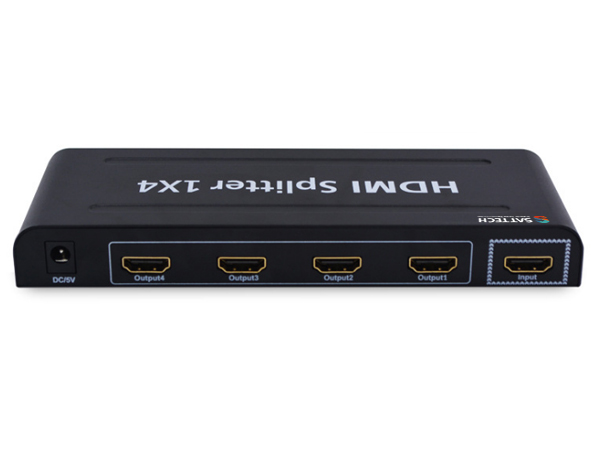

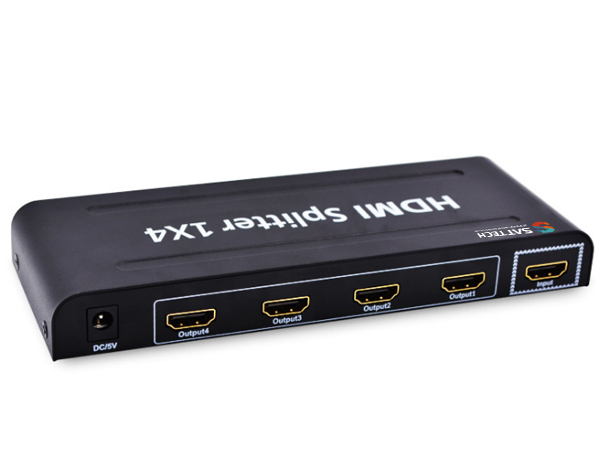

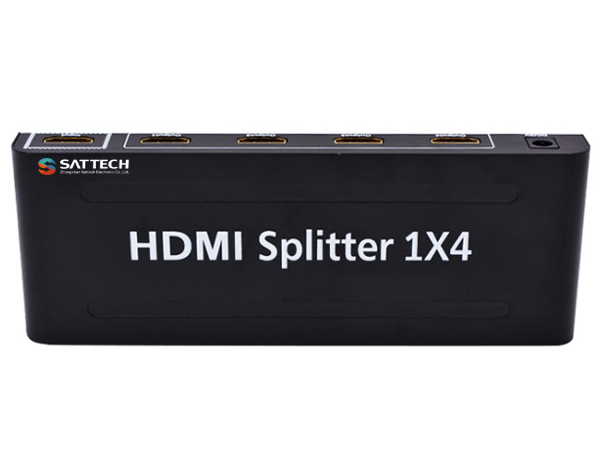

HDMI Splitter 1*4

Name: HDMI Splitter 1*4

Brand: SATTECH

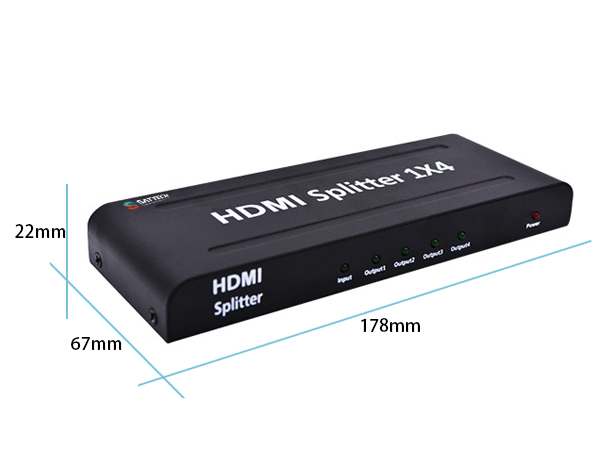

Size: 178*67*22mm

Weight: 250g

Input interface:1*HDMI

Output interface:4*HDMI

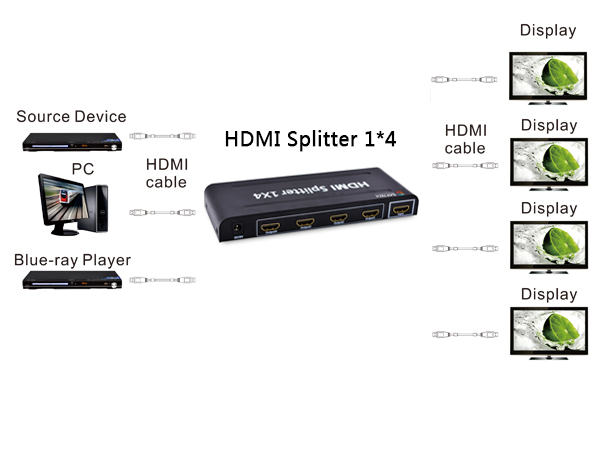

  • Connection and Size Picture
  • Specification

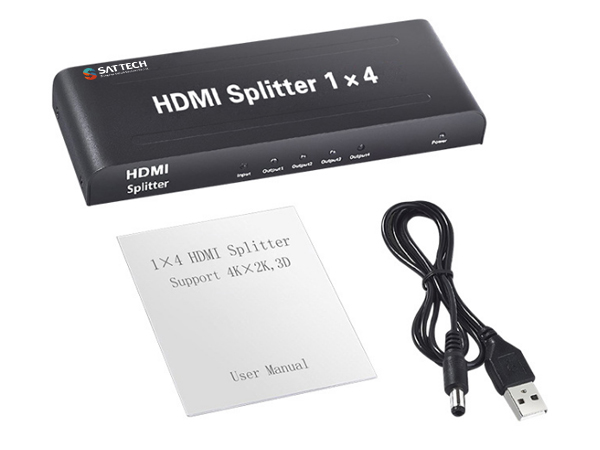

  • Accessories
  • Features:

    • *Distributes 1 HDMI input to 2/4/8 outputs for multiple HD displays
    • *Compliant with HDMI Specification 1.4
    • *Integrated pre-programmed HDCP keys
    • *Pure hardware HDCP engine increasing the robustness and security of HDCP operation
    • *Support HDMI 2D video up to 4K*2K@30Hz or 3D up to 1080P@60Hz
    • *Support up to12-bit deep color 1080P and compatible with 480i,576i,480p,576p,720p,1080i
    • *Serial data rate at up to 3.0Gbps per channel
    • *Supports HDCP Repeater
    • *Active port detection by monitoring PWR5V inputs and TMDS input clock
    • *With human body mode ESD protection up to over 6KV for all input/output ports.
    • *LED indicators for signal connection
