Single Specification

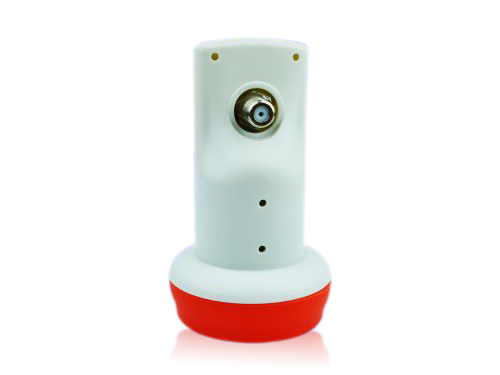

- Connection and Size Picture
- Specification
- Accessories
-
Single Specification S. No Parameters Value a) RF 1 Input Freq. Range Low-Band Min: 10.7GHz Max: 11.7GHz High Band Min: 11.7GHz Max: 12.75GHz 2 Input Feed horn Type Linear Linear. The feed will be optimized
to provide maximum efficiency for
the dish F/D (0.60) selected.
b) IF 3 Output Freq. Range Low-Band Min: 950MHz Max: 1950MHz High Band Min:1100MHz Max:2150MHz 4 Output VSWR Typical ratio: 2.0 : 1 5 Output Connector Type Single 75 ohm Female F connector c) LO 6 Local Oscillator Low-Band Typical: 9.75GHz High Band Typical: 10.6GHz 7 Local Oscillator stability Max: +/- 2 MHz 8 Phase Noise performance @ 1 KHz Max: -60 dBc/Hz @ 10 KHz Max: -80 dBc/Hz @ 100 KHz Max: -90 dBc/Hz d) Performance across ku band 9 Conversion gain 60-65dB 10 Gain Flatness over full band `+/-5 dB p-p 11 Gain flatness @ any 26MHz Bandwidth Max: +/-0.5dB p-p 12 Noise Figure 0.7dB 13 F/D 0.6 14 Cross-pol isolation Min: 20dB 15 Image Rejection Min: 40dB 16 1 dB Compression Point (Two Tones) Min: 3dBm(App.) e) Power Consumption 17 DC Current Consumption Max: 100mA 18 Operating Voltage and Band Switching Vertical Min: 9VDC Max: 14.5VDC Horizontal Min: 15.5VDC Max: 20VDC Low-Band 0KHz High-Band 22KHz 19 Type Linear regulator f) Environmental 20 Operating Temperature Min: -30℃ Max: 70℃ 21 Storage Temperature Min: -40℃ Max: 80℃
