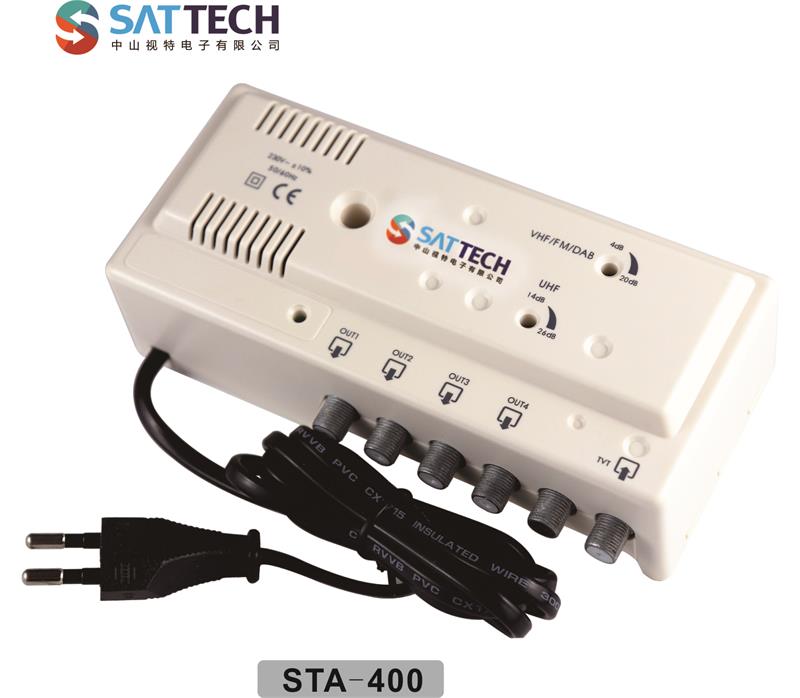

STA-400

Product Name:Amplifier

Model NO:STA-400

Frequency Range:

      VHF:47-318MHz,UHF:470-862MHz

Power supply:230VAC±10% 50/60Hz

All ports F-(f) connector,75Ohm

  • Connection and Size Picture
  • Specification
  • Accessories

  • Model STA-400
    Num of input/output 1 input and 4 output
    Frequency range Band VHF UHF
    MHz 47-318 470-862
    Gain dB 20±1.0 28±2.0
    Adj gain range dB 16 12
    Output level dBuV 102   DIN45004B
    99 (IMD3 -66dB)
    86 (IMD2 -66dB)
    Output level dBuV 86  CTB
    81  CSO
    82  XMOD
    Noise figure dB 4.2±0.2 3.3±0.3
    Return loss dB ≥10
    Mains voltage V AC230±10%  50/60Hz
    VA 6
    Operating temperature ﹣10~+65
