STLR100-1B-HGM

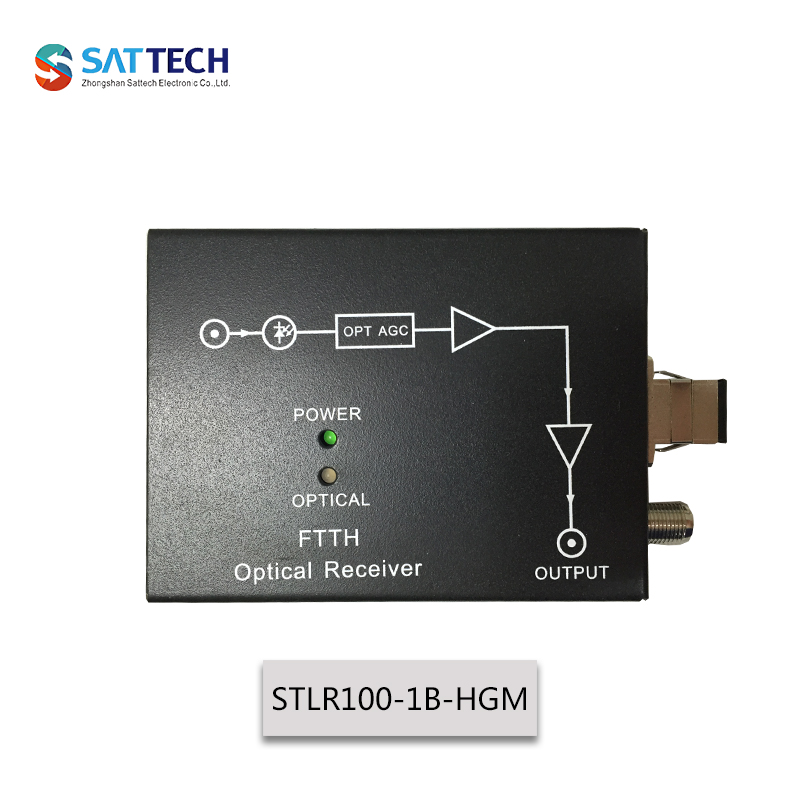

STLR100-1B-HGM Optical Receiver (Metal Shell)
  • Connection and Size Picture
  • Specification
  • Accessories
  • Feature

    Forward RF output

    * With the best highly sensitive optical detector, low noises and distortion

    * With an external 12V DC power offer

    * With optical power LED level indicator, more easy for engineering commissioning

    * AGC function, RF output, CTB AND CSO will be stable when optical input in -12~-3 dBm

    * SC/ APC AND FC/APC optical connection

  • Parameter

    Unit

    BLR100-1B-HG

    Bandwidth

    MHz

    47  862

    Optical Wavelength

    nm

    1290  1600

    Optical Input

    dBm

    -16  +2

    AGC Range

    dBm

    -12  -3

    AGC Stability

    dB

    ±1.0

    Optical Return Loss

    dB

    ≥45

    Flatness

    dB

    ±1.0

    Reflection Loss

    dB

    ≥14

    Output Impedance

    Ω

    75

    CNR

    dB

    ≥50

    CTB

    dB

    ≥65

    CSO

    dB

    ≥60

    Output Levels

    dBuV

    75

    Testing Conditions

    3.5% optical modulation, -4 dBm optical power received

    Operating Temperature

    -40  +60

    Power Consumption

    W

    5

    Dimension

    mm

    95mm×71mm×26mm
