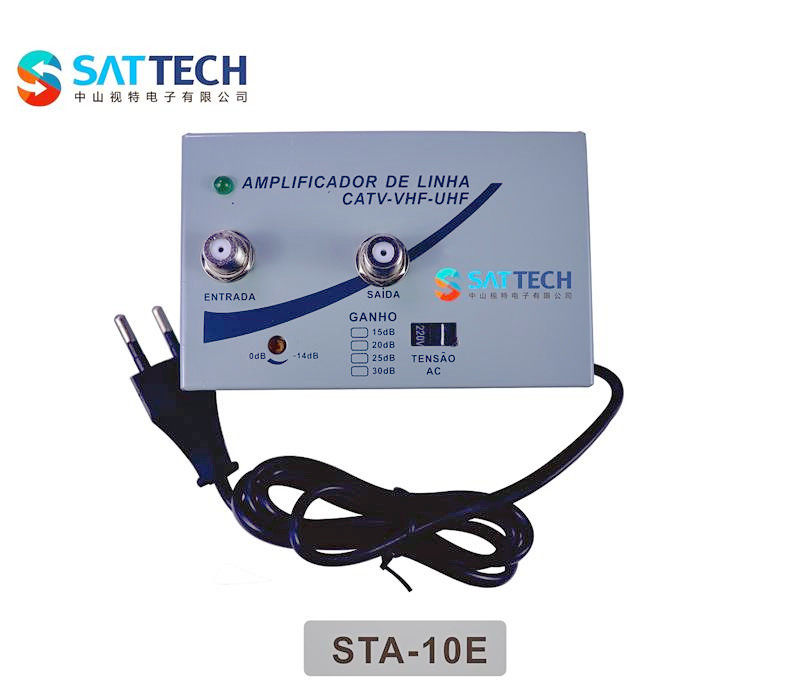

STA-10E

Product Name:Amplifier

Model NO:STA-10E

Frequency Range:40-70MHz,128-862MHz

Power supply:230VAC±10% 50/60Hz

All ports F-(f) connector,75Ohm

  • Connection and Size Picture
  • Specification
  • Accessories
  • TYPE

    STA-10E

    Frequency range

    40-70MHz,128-860MHz

    Gain

    25/30dB 30dB+Adj(0~-14dB)

    Flatness

    ±1dB

    Maximal output level

    102dBuV DIN45004B,

    99dBuV (IMD3-60dB)

    88dBuV (IMD2-60dB)

    86dBuV ( CTB-60dB)

    82dBuV (CSD-60dB)

    89dBuV (XMOD-60dB)

    Input and Output return loss

    10dB

    Noise figure

    4.5dB

    Supply voltage limit values,power consumption

    220VAC/127VAC±10% 2W

    Operating temperature range

    -20~+50

    Dimensions

    130*70*50mm
