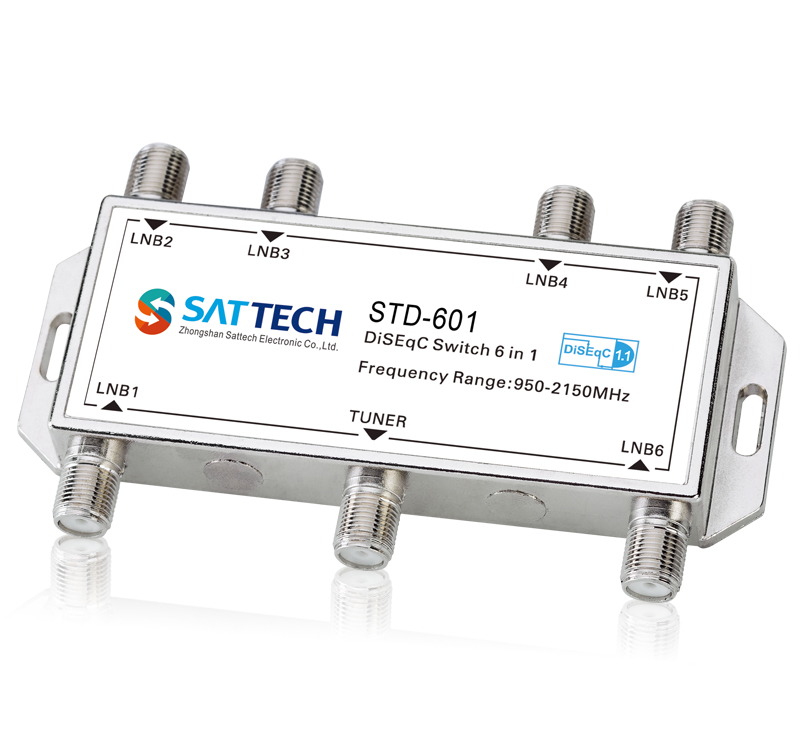

STD-601

Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:


    ◆ Zinc die-cast housing,nickel-plated

    ◆ Excellent quality component , professional circuit design and low loss

    ◆ Excellent quality chip , professional program design and compatible with more types of satellite receiver

    ◆ DiSEqC 1.1 , supports bi-directional DiSEqC full control functions

    ◆ Select one of six satellite signals through DiSEqC commands supplied from satellite receiver

    ◆ Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously

    ◆ Support DiSEqC “standby” command

  • Item

    Specification

    Item

    Specification

    Frequency Rang

    950-2150MHz

    Normal Working Voltage

    12-20V

    Insertion Loss

    3dB

    DC Power Consumption

    10mA

    Isolation

    20dB

    DC Max Power Passing

    500mA

    Return Loss

    8dB

    Impedance

    75Ω
