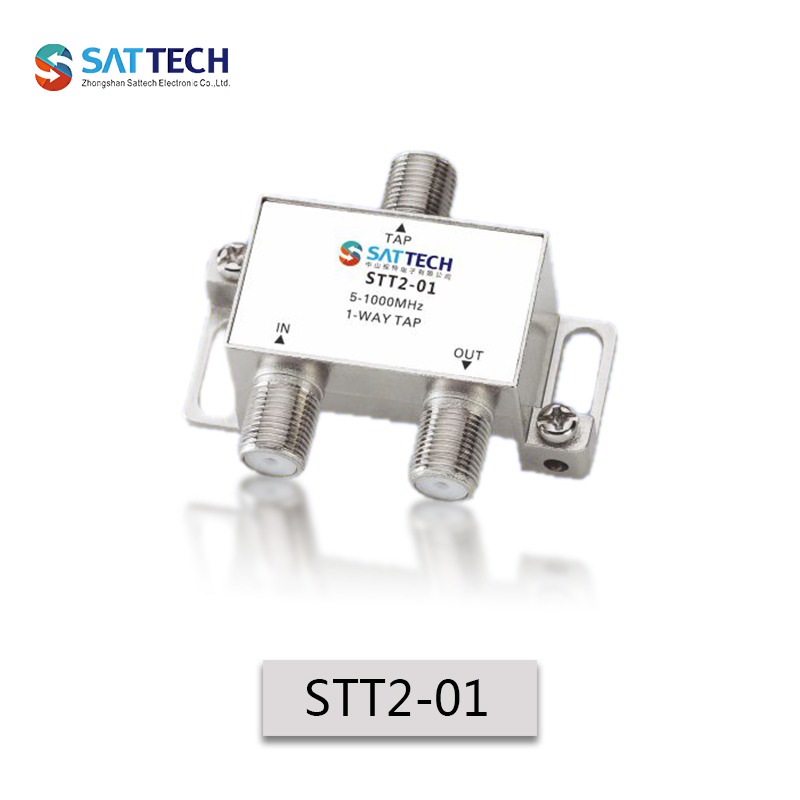

STT2-01

Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    • Zinc die-cast housing, nickel-plated
    • Screening factor: 5-1000MHz≥100dB
    • Easy installation, capable of passing cable thru housing bottom
    • Low insertion loss,high return loss and isolation
    • Micro-strip circuit design and perfect performance index
    • All ports F-(f)connector,75 Ohm
  • Item

    Frequency Range

    6

    8

    10

    12

    14

    16

    18

    20

    22

    24

    26

    28

    30

    32

    Insertion Loss
    (dB)

    5-40(MHz)

    2.5

    2.0

    2.0

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    40-470(MHz)

    2.5

    2.0

    2.0

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    470-860(MHz)

    2.5

    2.0

    2.0

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    860-1000(MHz)

    3.0

    2.4

    2.4

    1.5

    1.2

    1.0

    1.0

    1.0

    1.0

    1.0

    1.0

    1.0

    1.0

    1.0

    Tap Loss Tolerance
    (dB)

    5-40(MHz)

    ±1.0

    40-470(MHz)

    ±1.0

    470-860(MHz)

    ±1.5

    860-1000(MHz)

    ±1.5

    Reverse Isolation
    (dB)

    5-40(MHz)

    25

    30

    25

    30

    30

    30

    35

    35

    35

    40

    42

    42

    42

    45

    40-470(MHz)

    24

    28

    25

    28

    28

    28

    30

    32

    32

    35

    38

    38

    40

    42

    470-860(MHz)

    24

    28

    25

    28

    28

    28

    30

    32

    32

    35

    38

    38

    40

    42

    860-1000(MHz)

    22

    25

    25

    26

    26

    26

    28

    28

    28

    28

    30

    35

    36

    38

    Return Loss
    (dB)

    5-40(MHz)

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    40-470(MHz)

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    470-860(MHz)

    17

    17

    17

    17

    17

    17

    17

    17

    17

    17

    17

    17

    17

    17

    860-1000(MHz)

    17

    17

    17

    17

    17

    17

    17

    17

    17

    17

    17

    17

    17

    17
