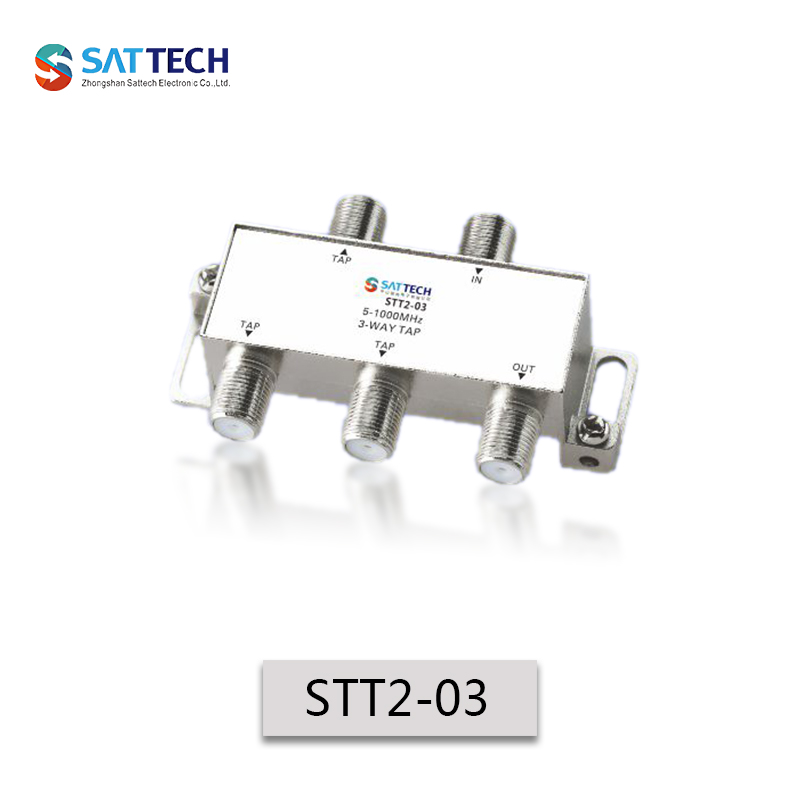

STT2-03
Packing Information
Product size:
Giftbox Size :mm
Carton Size :cm
- Connection and Size Picture
- Specification
- Accessories
-
Features:
-
Zinc die-cast housing, nickel-plated
-
Screening factor: 5-1000MHz≥100dB
-
Easy installation, capable of passing cable thru housing bottom
-
Low insertion loss,high return loss and isolation
-
Micro-strip circuit design and perfect performance index
-
All ports F-(f)connector,75 Ohm
-
|
Item
|
Frequency Range
|
10
|
12
|
14
|
16
|
18
|
20
|
22
|
24
|
27
|
30
|
Insertion Loss
(dB)
|
5-40(MHz)
|
3.5
|
3.0
|
2.5
|
2.0
|
2.0
|
1.2
|
1.2
|
1.0
|
1.0
|
1.0
|
|
40-470(MHz)
|
3.5
|
3.5
|
2.5
|
2.0
|
2.0
|
1.2
|
1.2
|
1.0
|
1.0
|
1.0
|
|
470-860(MHz)
|
3.8
|
3.5
|
2.8
|
2.2
|
2.2
|
1.5
|
1.5
|
1.2
|
1.2
|
1.2
|
|
860-1000(MHz)
|
4.5
|
4.0
|
3.0
|
2.5
|
2.2
|
1.5
|
1.5
|
1.2
|
1.2
|
1.2
|
Tap Loss Tolerance
(dB)
|
5-40(MHz)
|
±1.0
|
|
40-470(MHz)
|
±1.0
|
|
470-860(MHz)
|
±1.5
|
|
860-1000(MHz)
|
±1.5
|
Mutual Isolation
(dB)
|
5-40(MHz)
|
28
|
25
|
26
|
26
|
26
|
27
|
27
|
27
|
27
|
27
|
|
40-470(MHz)
|
28
|
25
|
26
|
26
|
26
|
27
|
27
|
27
|
27
|
27
|
|
470-860(MHz)
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
|
860-1000(MHz)
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
Reverse Isolation
(dB)
|
5-40(MHz)
|
28
|
27
|
27
|
32
|
35
|
25
|
25
|
25
|
25
|
25
|
|
40-470(MHz)
|
30
|
27
|
27
|
32
|
35
|
32
|
32
|
40
|
38
|
40
|
|
470-860(MHz)
|
25
|
25
|
28
|
30
|
32
|
30
|
32
|
35
|
35
|
38
|
|
860-1000(MHz)
|
25
|
23
|
25
|
30
|
32
|
30
|
30
|
35
|
32
|
35
|
Return Loss
(dB)
|
5-40(MHz)
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
|
40-470(MHz)
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
|
470-860(MHz)
|
18
|
18
|
18
|
18
|
18
|
18
|
18
|
18
|
18
|
18
|
|
860-1000(MHz)
|
17
|
17
|
17
|
17
|
17
|
17
|
17
|
17
|
17
|
17
|
-
